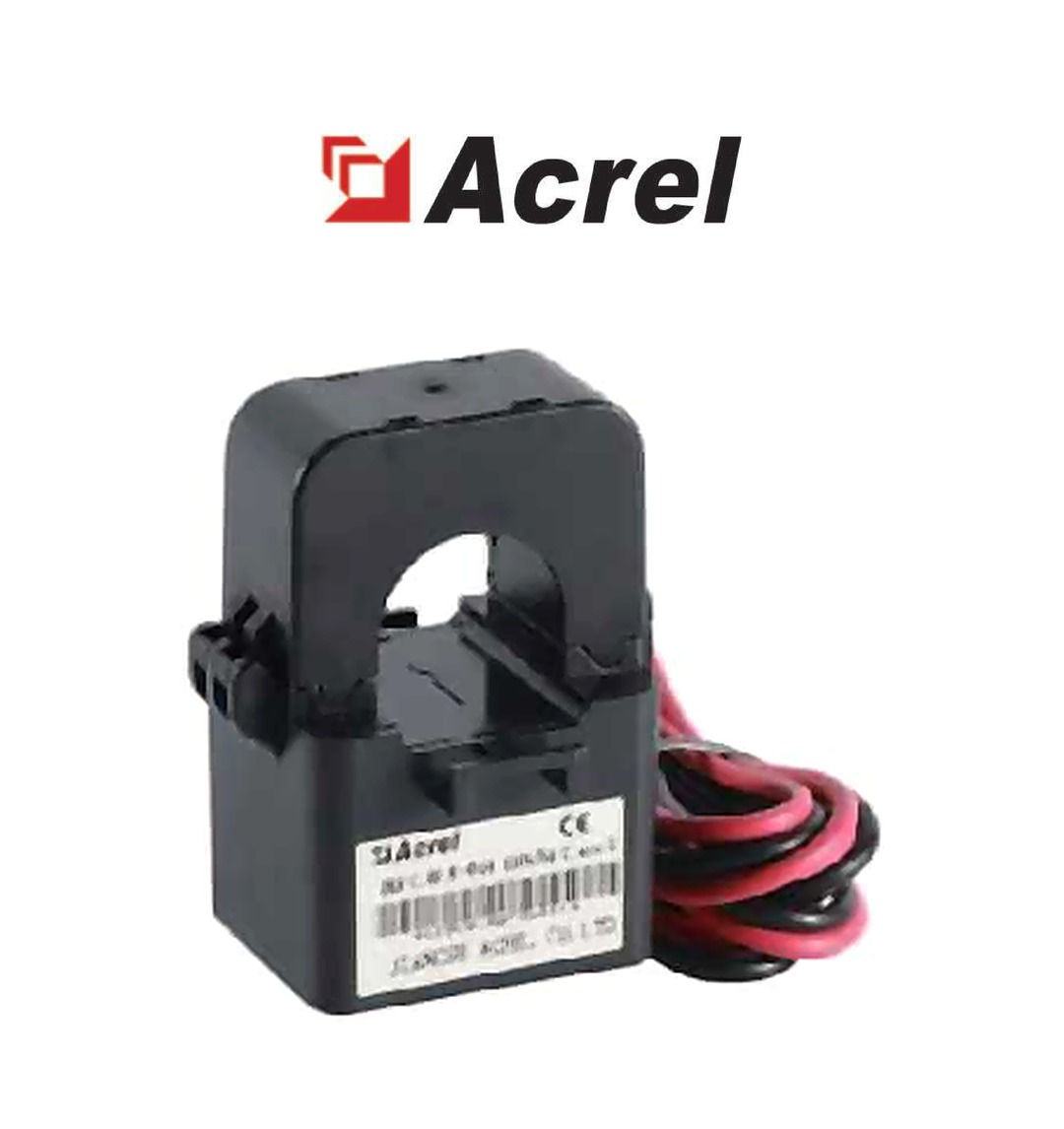

AKH-0.66 K type split core (openable) current transformers for busbar installation without breaking the circuit. Class 0.2, 0.5 or 1 depending on ratio, 5A or 1A secondary. Each model covers a range of ratios at the same price - confirm the exact ratio and class with your order.
Lead time: 8 - 10 days
Models in this range:
K-30x20 – 30x20mm window, ratios 20-75/1 to 350-400/5(1), class 0.5-1
K-60x40 – 60x40mm window, ratios 250-300/5 to 1500-2000/5, class 0.5-1
K-80x40 – 80x40mm window, ratios 300/5 to 2500-3000/5, class 0.2-1
K-80x50 – 80x50mm window, ratios 250-300/5 to 1000/5, class 0.5-1
K-80x80 – 80x80mm window, ratios 250-300/5 to 1000/5, class 0.5-1
K-100x40 – 100x40mm window, ratios 1000-2000/5 to 4000/5, class 0.2-0.5
K-120x60 – 120x60mm window, ratios 400-450/5 to 2500-4000/5, class 0.2-0.5
K-120x80 – 120x80mm window, ratios 500-800/5 to 1250-1500/5, class 0.5
K-130x40 – 130x40mm window, ratios 1000-2000/5 to 2500-4000/5, class 0.2-0.5
K-130x50 – 130x50mm window, ratios 1000-2000/5 to 4000-5000/5, class 0.2-0.5
K-130x60 – 130x60mm window, ratios 1000-2000/5 to 2500-6000/5, class 0.2-0.5
K-140x60 – 140x60mm window, ratios 1000-2000/5 to 4000-5000/5, class 0.2-0.5
K-160x80 – 160x80mm window, ratios 1000-2000/5 to 4000-5000/5, class 0.2-0.5
K-200x80 – 200x80mm window, ratios 1000-2000/5 to 4000-5000/5, class 0.2-0.5
K-S-50x30 – 50x30mm window with 0.02 protection winding, 500-600/5 to 1500/5, class 0.5/0.5
Select your model from the dropdown above. Prices include VAT.
