Description:

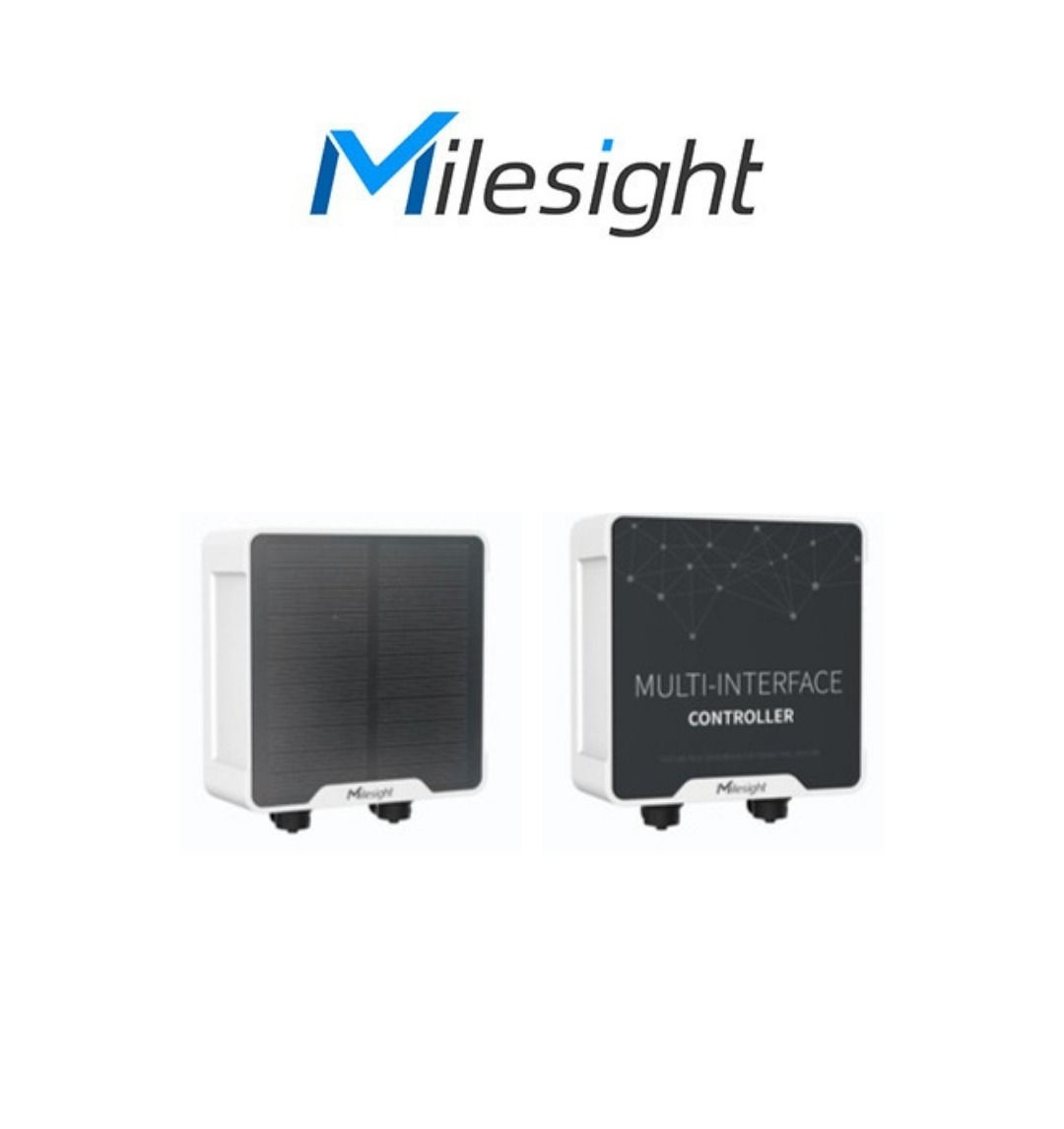

The Milesight UC50x is a rugged, IP68-rated LoRaWAN multi-interface controller that reads field sensors and meters and sends the data over LoRaWAN. It combines RS485 Modbus RTU / RS232, SDI-12, two analogue inputs (4-20 mA or 0-10 V) and two GPIOs that work as digital inputs, digital outputs or pulse counters, so one unit can log a pulse-output water or gas meter, a Modbus meter, a pressure or level transmitter and an environmental sensor at the same site. It powers the sensors it reads from its own switchable 3.3 V and 5/9/12 V outputs, stores up to 600 records and retransmits them if the network drops. Choose the UC501 for sites with sun (built-in solar panel plus rechargeable batteries) or the UC502 for shaded or underground locations (long-life replaceable Li-SOCl2 batteries).
Key Features:
LoRaWAN, EU868 band, up to 15 km line of sight; UC501 Class A/C with multicast, UC502 Class A
1 x RS485 (Modbus RTU / transparent) or RS232, software switchable, 1200-115200 bps
2 x GPIO: digital input, digital output or pulse counter (up to 4000 Hz)
2 x analogue inputs, 4-20 mA or 0-10 V, 12-bit
1 x SDI-12 (V1.4) for weather, hydrological and agricultural sensors
Sensor power outputs: 2 x 3.3 V and 2 x 5/9/12 V (switchable)
Threshold and change alarms, 600-record local storage with retransmission
IP68 enclosure (1 m for 7 days) with M12 connectors; wall or pole mounting
Configured by NFC (Milesight ToolBox app) or USB Type-C
Technical Specifications:
Models: UC501 (solar + rechargeable) and UC502 (Li-SOCl2 battery), LoRaWAN EU868
Radio: 16 dBm (868 MHz), -137 dBm sensitivity, internal antenna (external SMA version optional)
Power UC501: 2 x 2550 mAh rechargeable batteries + built-in 6 V 1.7 W solar panel, or 5-24 V DC
Power UC502: 3 x 9000 mAh replaceable ER26500 Li-SOCl2 batteries, or 5-24 V DC
Operating temperature: UC501 -20 to +60 degC, UC502 -30 to +70 degC
Protection: IP68
Dimensions: 116 x 116 x 45.5 mm (connectors excluded)
Ordering Options:
Supplied as the LoRaWAN EU868 version for South Africa and the SADC region. A LoRaWAN gateway is needed to receive the data. Other regional bands, the external-antenna version and the NB-IoT / Cat-M cellular version are available on request; please ask for a quote.
Lead Time:
8 - 10 Days (imported to order).
