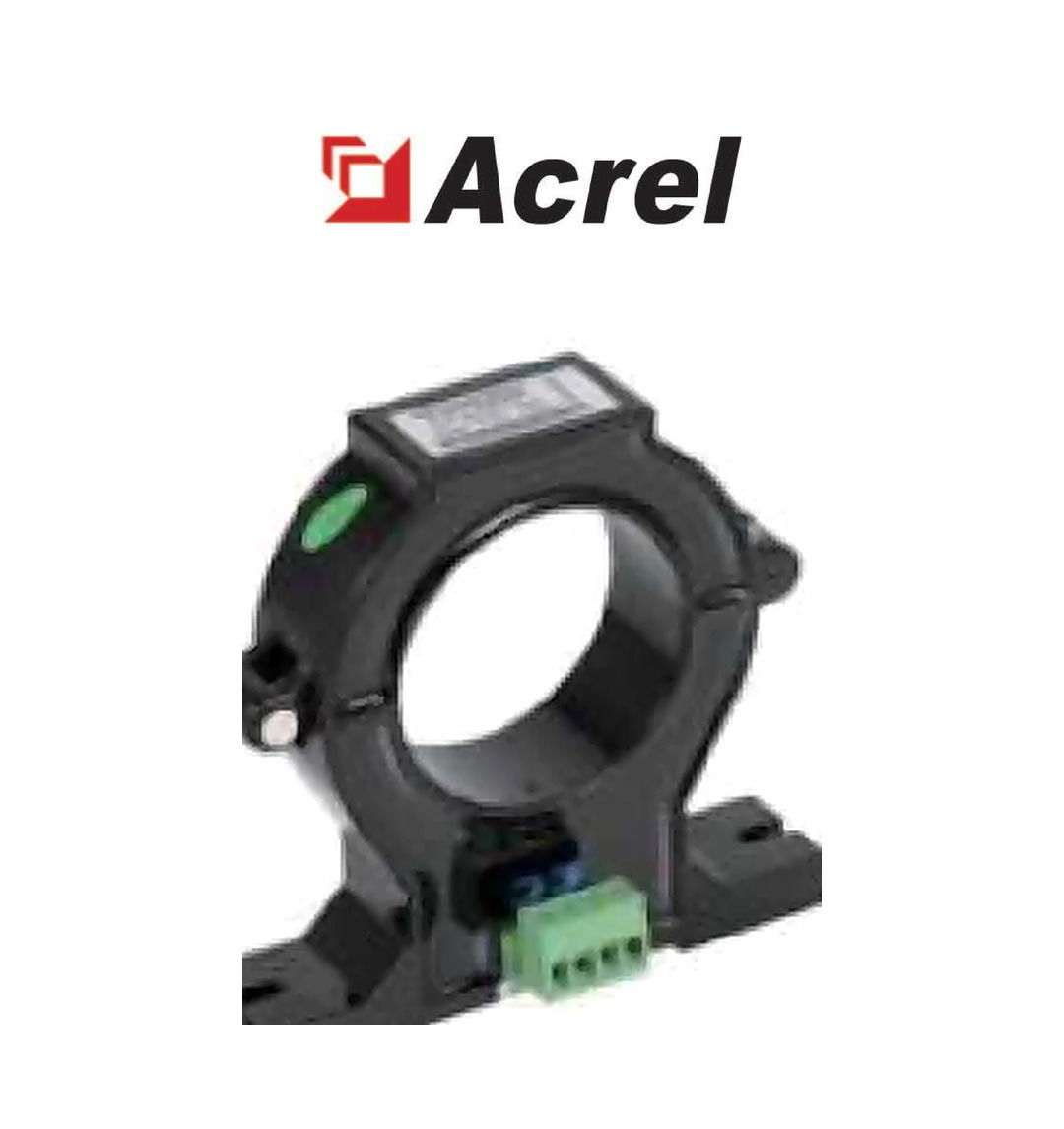

Open loop Hall effect current sensors for AC and DC current measurement, with 5V/4V or 4-20mA outputs and DC12V, 24V or plus and minus 15V supplies. Apertures from 8mm to 132x52mm and ranges from 20A to 20,000A.
Lead time: 8 - 10 days
Models in this range:
AHKC-EKA – 0-(50-500)A, 5V/4V out, 20mm aperture
AHKC-EKAA – DC 0-(50-500)A, 4-20mA out, 20mm aperture
AHKC-EKDA – AC 0-(50-500)A, 4-20mA out, 20mm aperture
AHKC-EKB – 0-(200-1000)A, 5V/4V out, 40mm aperture
AHKC-EKBA – DC 0-(200-1000)A, 4-20mA out, 40mm aperture
AHKC-EKBDA – AC 0-(200-1000)A, 4-20mA out, 40mm aperture
AHKC-EKC – 0-(500-1500)A, 5V/4V out, 55mm aperture
AHKC-EKCA – DC 0-(500-1500)A, 4-20mA out, 55mm aperture
AHKC-EKCDA – AC 0-(500-1500)A, 4-20mA out, 55mm aperture
AHKC-K – 0-(400-2000)A, 5V/4V out, 64x16mm
AHKC-KAA – DC 0-(400-2000)A, 4-20mA out, 64x16mm
AHKC-KDA – AC 0-(400-2000)A, 4-20mA out, 64x16mm
AHKC-H – 0-(500-3000)A, 5V/4V out, 82x32mm
AHKC-KA – 0-(500-5000)A, 5V/4V out, 104x36mm
AHKC-HB-8000 – 0-(2000-8000)A, 5V/4V out, 132x52mm
AHKC-HB-20000 – 0-(10000-20000)A, 5V/4V out, 132x52mm
AHKC-HBAA-8000 – DC 0-(2000-8000)A, 4-20mA out, 132x52mm
AHKC-HBAA-20000 – DC 0-(10000-20000)A, 4-20mA out, 132x52mm
AHKC-HBDA-8000 – AC 0-(2000-8000)A, 4-20mA out, 132x52mm
AHKC-HBDA-20000 – AC 0-(10000-20000)A, 4-20mA out, 132x52mm
AHKC-LS – 0-(100-2000)A, 5V out, 100x42mm, DC24V
AHKC-EKBA/T – 1500A, 12mA +/-8mA out, 40mm aperture, DC24V
AHKC-E – 0-(50-500)A, 5V/4V out, 20mm aperture
AHKC-EA – 0-(200-1000)A, 5V/4V out, 40mm aperture
AHKC-EB – 0-(500-1500)A, 5V/4V out, 60mm aperture
AHKC-LT – 0-(100-800)A, 5V/4V out, 32.5mm aperture
AHKC-C – 0-(100-800)A, 5V/4V out, 31x13mm
AHKC-BS-N – 0-(50-500)A, 5V/4V out, 20.5x10.5mm
AHKC-BS – 0-(50-500)A, 5V/4V out, 20.5x10.5mm
AHKC-BSA – DC 0-(50-500)A, 4-20mA out, 20.5x10.5mm
AHKC-F – 0-(200-1000)A, 5V/4V out, 43x13mm
AHKC-FA – 0-(200-1500)A, 5V/4V out, 52x15mm
AHKC-KAS – 0-(200-1500)A, 5V/4V out, 41x31mm
AHKC-HAT – 0-(400-2000)A, 5V/4V out, 52x32mm
AHKC-KAL – 0-(500-3000)A, 5V/4V out, 70x21mm
AHKC-A – 0-(50-500)A, 2.5 +/-2V out, 15mm aperture, DC12V
AHKC-E28 – 600A, 2.5 +/-2V out, 28mm aperture, DC5V
AHKC-DHAB – Dual channel 75A and 750A, 2V out each, 22.5mm aperture, DC5V
AHKC-HC5F – 900A, 2.5 +/-2V out, 12.5mm aperture, DC5V
AHKC-HAB – 900A, 2.5 +/-2V out, 40x6.2mm, DC5V
AHKC-AS8TA – DC 100A, 0.5-3V out, 8mm aperture, DC5V
AHKC-EST – 20A, 5V out, 20mm aperture, DC24V
Select your model from the dropdown above. Prices include VAT.
