Description:

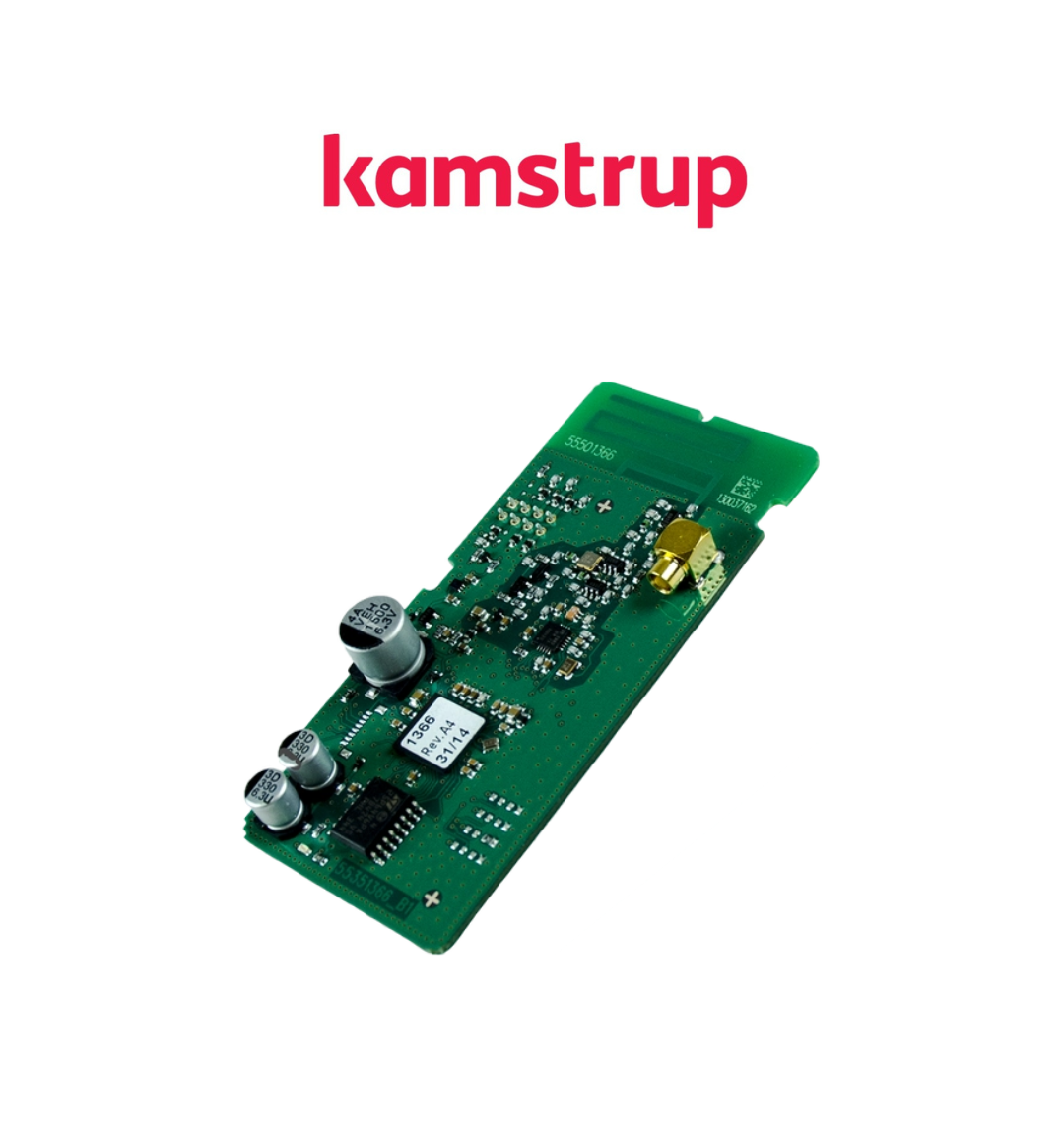

The Kamstrup OMNICON Multi-Utility Controller is a plug-in module for OMNIPOWER single-phase, three-phase and CT meters that turns the electricity meter into a collector for wireless M-Bus water, heat, cooling and gas meters. It receives wireless M-Bus mode C1 and T1 telegrams at 868 MHz from up to 24 meters, logs them internally and forwards them through the electricity meter's OMNIA radio network, with plug-and-play installation and no local configuration.
Key Features:
Plugs into OMNIPOWER single-phase, three-phase and CT meters
Wireless M-Bus mode C1 and T1, 868 MHz
Reads up to 24 water, heat, cooling or gas meters
Plug-and-play - no local configuration
Internal data logger with automatic profile-based logging per meter type
Internal PCB antenna; optional connector for external / mini-triangle antenna (6699448, 2.5 m)
Supports Kamstrup MULTICAL meters and third-party OMS meters
Power consumption below 0.27 W, supplied from the meter
Technical Specifications:
Model: 6850079
Type numbers: 6850079 (OMNICON MUC for RF); 6845008 (OMNICON MUC for P2P)
Radio: wireless M-Bus C1 / T1, 868 MHz
Capacity: up to 24 meters
Antenna: internal PCB, optional external connector
Power consumption: < 0.27 W
Operating temperature: -40 to +85 C
Storage temperature: -40 to +85 C
Protection: IP51 when mounted in meter
System: for OMNIA systems only
Lead Time:
1 - 3 Days.
