Description:

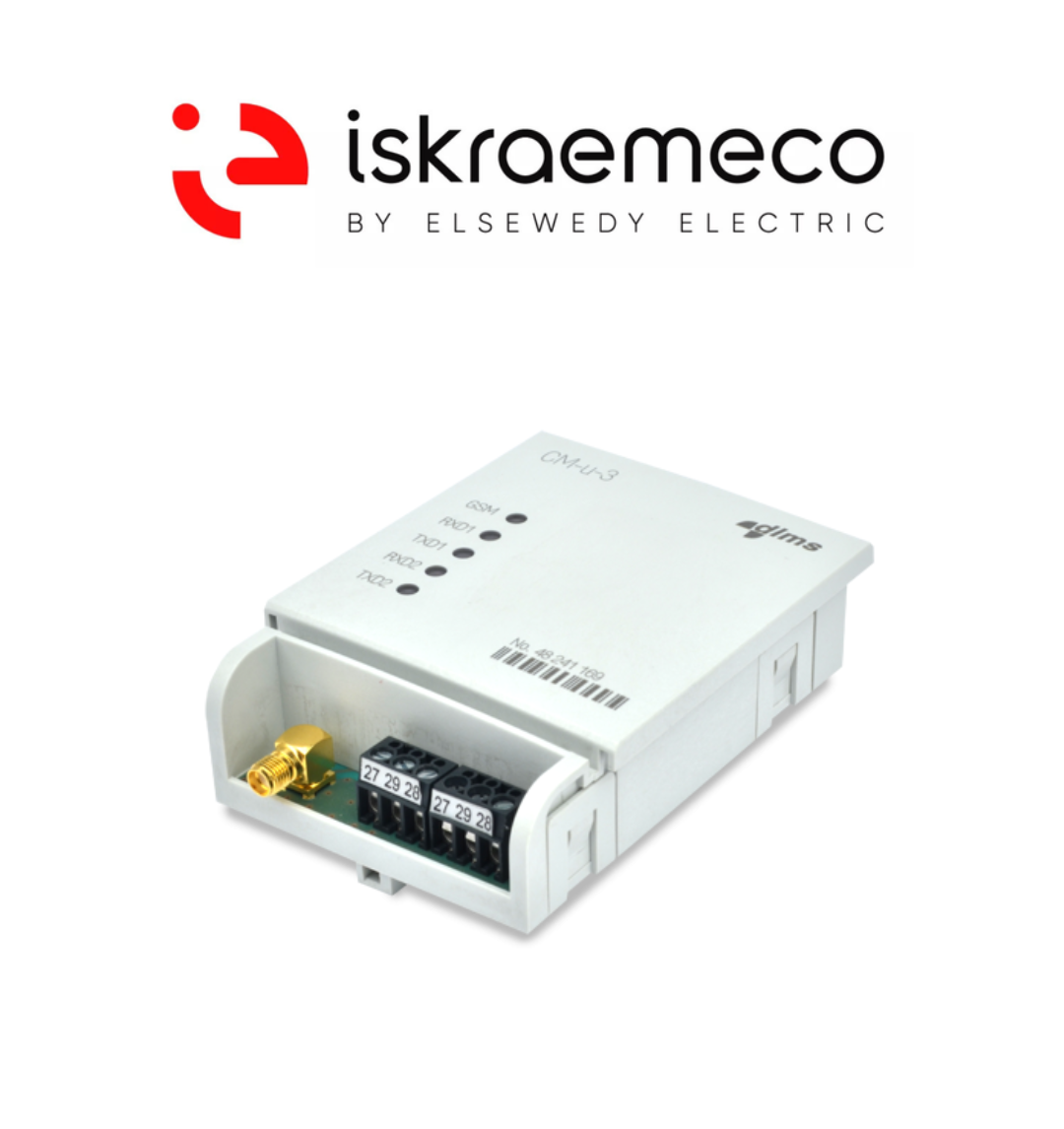

The Iskraemeco CM-LTE-3 is a plug-in cellular communication module for the MT880 high-precision modular energy meter. It contains a 4G LTE modem with automatic fallback to 3G UMTS and 2G GSM/GPRS, so the meter can be read remotely over the mobile network using DLMS/COSEM, and it also provides an RS485 port for local reading or connecting further meters. The module is powered from the meter and can be fitted or exchanged in the field, making it the simplest way to bring an installed MT880 onto a remote-reading platform.
Key Features:
Plug-in communication module for Iskraemeco MT880 meters, exchangeable in the field
4G LTE modem with automatic 4G / 3G / 2G switching (800/900/1800/2100 MHz)
Remote reading over the mobile network using DLMS/COSEM (TCP/IP)
Additional RS485 port for local reading or cascading meters
Powered from the meter, approx. 0.4 W standby / 4.2 W maximum
LED indication of network and communication status, SMA antenna connector
Technical Specifications:
Model: CM-LTE-3
Application: Communication module for MT880 meters
Modem: LTE / UMTS / GSM-GPRS, automatic 4G / 3G / 2G switching
Bands: 800 / 900 / 1800 / 2100 MHz
Interfaces: Mobile network (SIM), RS485, SMA antenna connector
Protocols: DLMS/COSEM over TCP/IP, IEC 62056-21
Power supply: From the meter, approx. 0.4 W standby, 4.2 W maximum
Mounting: Plug-in under the MT880 terminal cover, field exchangeable
Ordering Options:
Part number CM-LTE-3 - R3,104 incl. VAT.
Lead Time:
1 - 3 Days
